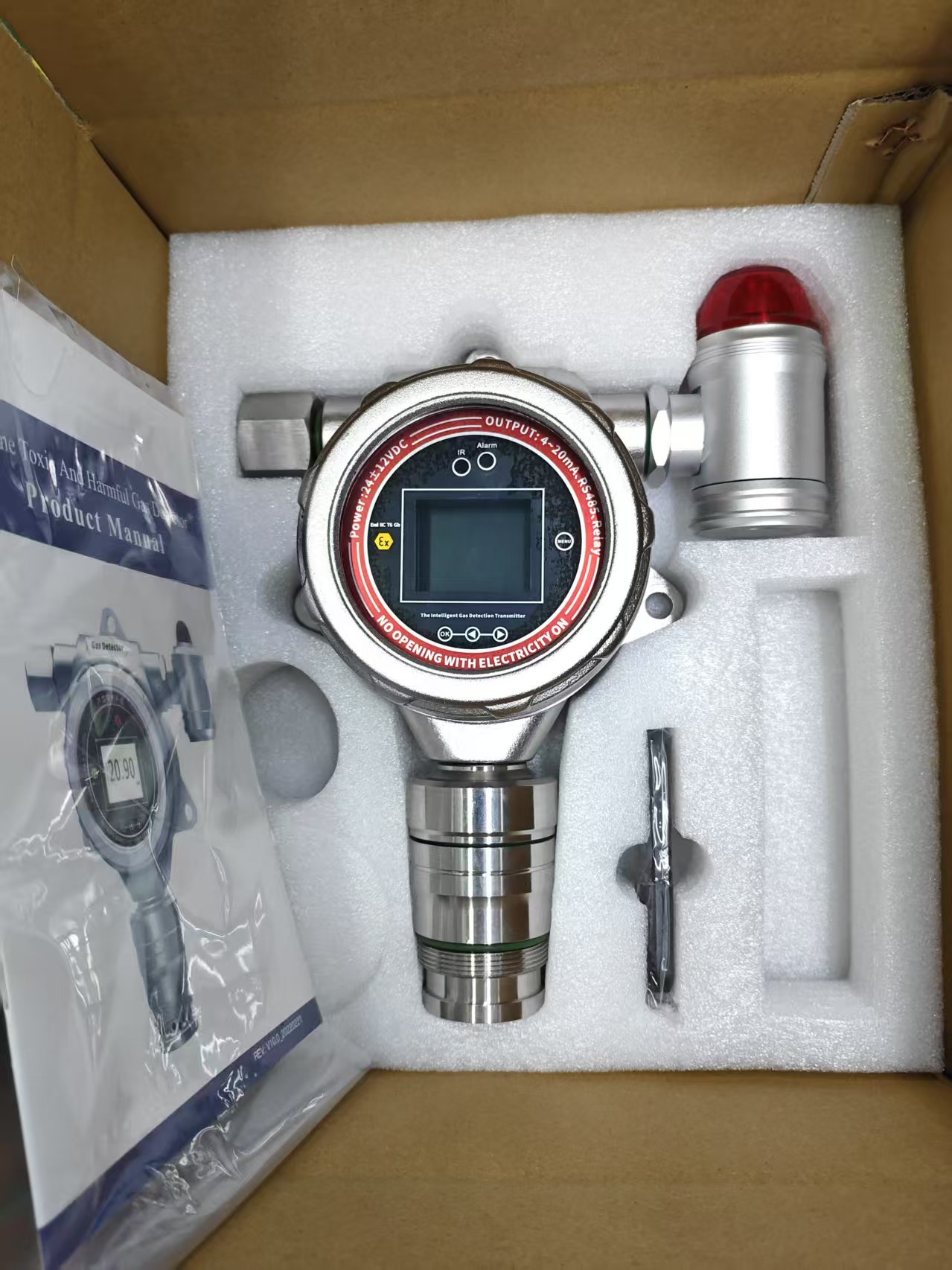

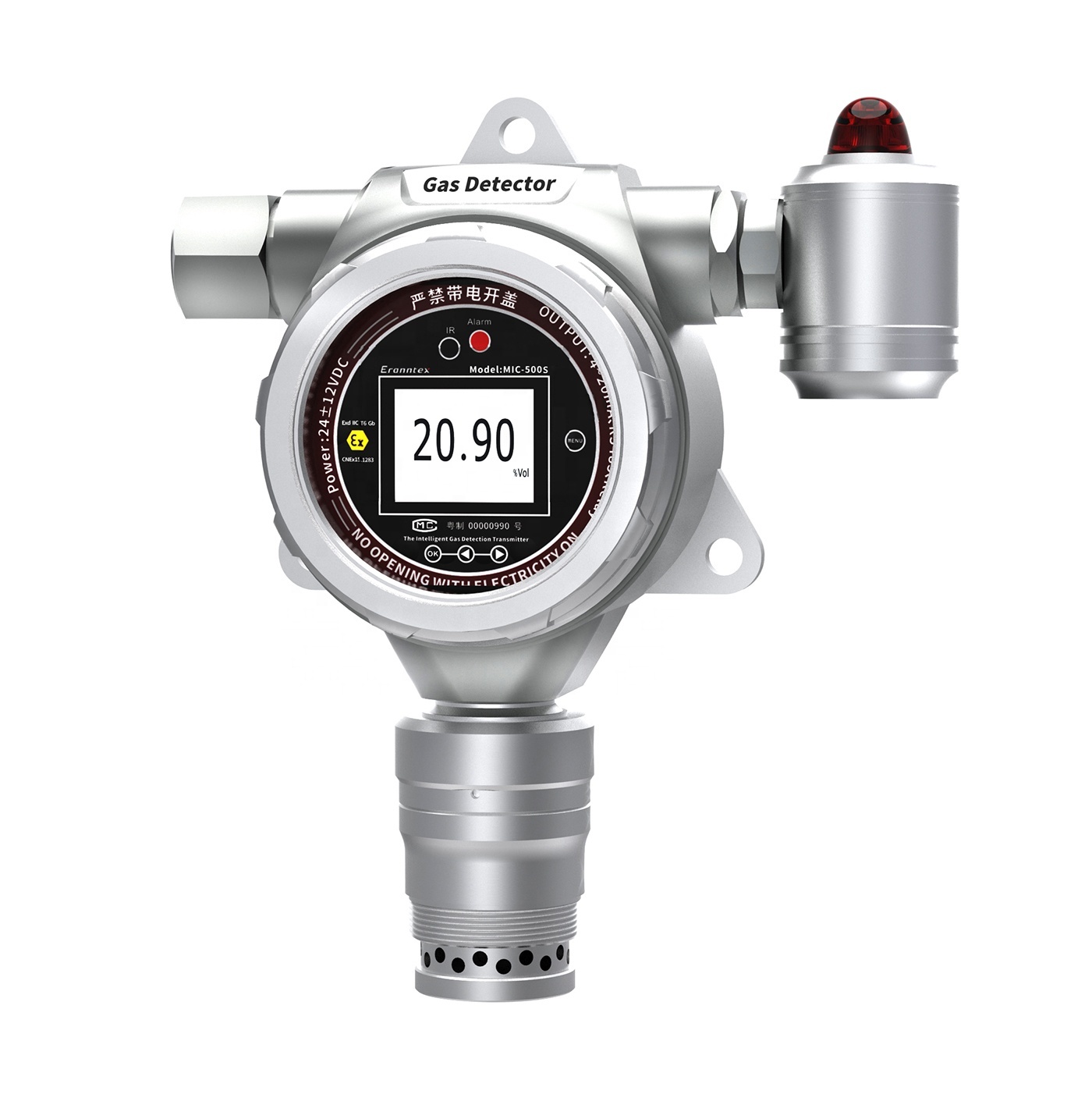

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
| Place of Origin | China |
|---|---|
| Nombre de la marca | Zetron |
| Certificación | CE ATEX SIL |
| Model Number | MIC500S |
| Minimum Order Quantity | 1 set |
| Precio | USD 890/set - 7298/set |
| Packaging Details | 230x210x120 mm |
| Delivery Time | 1-10 work days |
| Payment Terms | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability | 1000 SET / week |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Product name | MIC500S | Function | measure gas leakage and concentration |
|---|---|---|---|
| Detecting Gas | Combustible Gas/H2S/CO/O2/H2S/H2/CH4 | Connection | 4-20mA, RS485, Hart, Relay |
| Customized support | OEM, ODM, OBM | Weight | 2.5kg |
| Class Of Protection | IP65/IP66 | Humidity | 0-95%RH (no dew) |
| Detection Mode | Diffused/Pipeline/Pump suction |
Descripción de producto
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
OVERVIEW
SPECIFICATION
| Gas | Toxic& Harmful Gas more than 500 types | Range | 0-50000PPM;
0-100%LEL ;
0-100%Vol.
other ranges can be customized
|
| Size | 210×170×85mm (L×H×W) | Weight | 1.8 Kg |
| Installation method | Pipeline Type
Wall Mounting Type
|
Display | 1.7-inch high-definition color screen |
| Environment | Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
|
Approvals | IP65; Exd Ⅱ CT6 |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box | ||
| Working Voltage | 12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A | ||
| Working Method | Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type. | ||
| Connecting Cable | Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth. | ||
| Optional items | Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
|
||
| Installation Type Accessories
(Optional configuration)
|
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
|
||
APPLICATION
